Package # 5 , Tosot 24KBTU MACHINE
Tosot - 24'000BTU
Tosot - 24'000BTU
Tosot 24000 BTU
Covers up to 1000ft2 21SEER 10HSPF
AHRI - 211164240
MOCP 20A MCA 19A Power Wire Size 12-2 AW Pre-Charge Length - 131.2 Max.
Number IDU: 3 Compressor Crankcase and Base Pan Heaters include WIFI

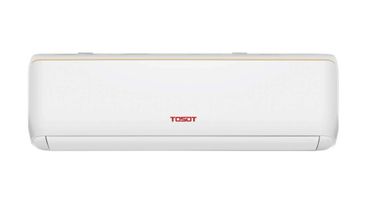

Typical Coverage
Tosot - 24'000BTU
7000BTU - 150ft2
9000BTU - 300ft2
12000BTU - 500ft2
18000BTU - 750ft2
24000BTU - 1000ft2
Head Combinations
Head Combinations
7 + 7 + 9 = 23
7 + 7 + 12 = 26
7 + 9 + 9 = 25
7 + 7 + 7 = 21
9 + 9 + 9 =27
Head Combinations
Package # 6 , Tosot 30KBTU MACHINE
Tosot - 30'000BTU
Tosot - 30'000BTU
Covers up to 1250ft2
21SEER 10HSPF
AHRI - 211164241
MOCP 30A MCA 26A
Main Power Wire Size 10-2 AWG
Pre-Charge Length - 131.2
Max. Number IDU: 4
Compressor Crankcase and Base Pan Heaters include
WIFI

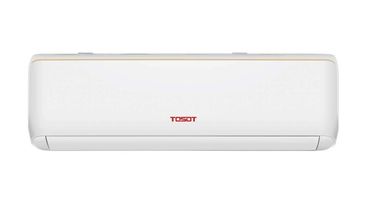

Typical Coverage
Tosot - 30'000BTU
7000BTU - 150ft2
9000BTU - 300ft2
12000BTU - 500ft2
18000BTU - 750ft2
24000BTU - 1000ft2
Head Combinations
Head Combinations
7 + 7 + 18 = 32
7 + 9 + 12 = 28
7 + 12 + 12 = 31
9 + 9 + 9 = 27
9 + 9 + 12 = 30
9 + 12 + 12 = 33
7 + 9 + 18 = 34
Head Combinations
Package # 7 , Tosot 36KBTU MACHINE
Tosot - 36'000BTU
Tosot - 36'000BTU
Covers up to 1650ft2
21SEER 10HSPF
AHRI - 211164242
MOCP 30A MCA 26A
Main Power Wire Size 10-2 AWG
Pre-Charge Length - 131.2
Max. Number IDU: 4
Compressor Crankcase and Base Pan Heaters include
WIFI
Typical Coverage
Tosot - 36'000BTU
7000BTU - 150ft2
9000BTU - 300ft2
12000BTU - 500ft2
18000BTU - 750ft2
24000BTU - 1000ft2
Head Combinations
7 + 7 + 24 = 38
7 + 9 + 18 = 34
7 + 12 + 18 = 37
9 + 9 + 18 = 36
9 + 12 + 12 = 33
9 + 12 + 18 = 39
12 + 12 + 12 = 36
Package # 8 , Tosot 36KBTU MACHINE
Tosot - 42'000BTU
Tosot - 42'000BTU
Covers up to 1650ft2
21SEER 10HSPF
AHRI - 211164242
MOCP 30A MCA 26A
Main Power Wire Size 10-2 AWG
Pre-Charge Length - 131.2
Max. Number IDU: 4
Compressor Crankcase and Base Pan Heaters include
WIFI
Typical Coverage
Tosot - 42'000BTU
7000BTU - 150ft2
9000BTU - 300ft2
12000BTU - 500ft2
18000BTU - 750ft2
24000BTU - 1000ft2
Head Combinations
Head Combinations
7 + 7 + 24 = 38
7 + 9 + 24 = 40
7 + 12 + 24 = 43
7 + 18 + 18 = 43
9 + 9 + 24 = 42
9 + 12 + 18 = 39
9 + 12 + 24 = 45
9 + 18 + 18 = 45
12 + 12 + 18 = 42
